Product description:

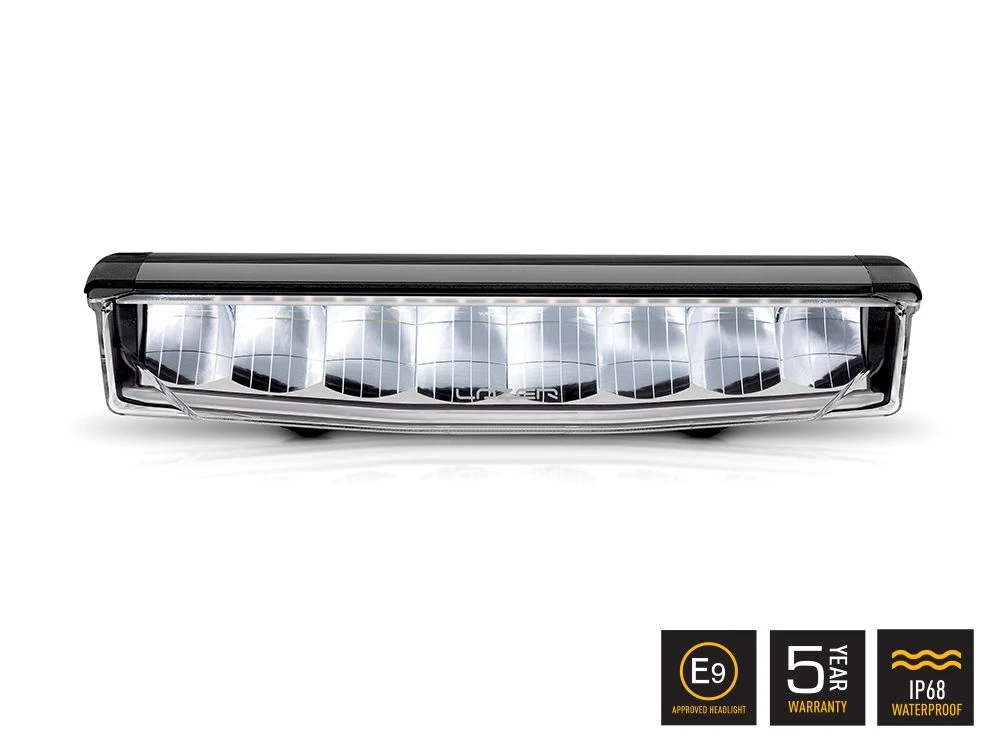

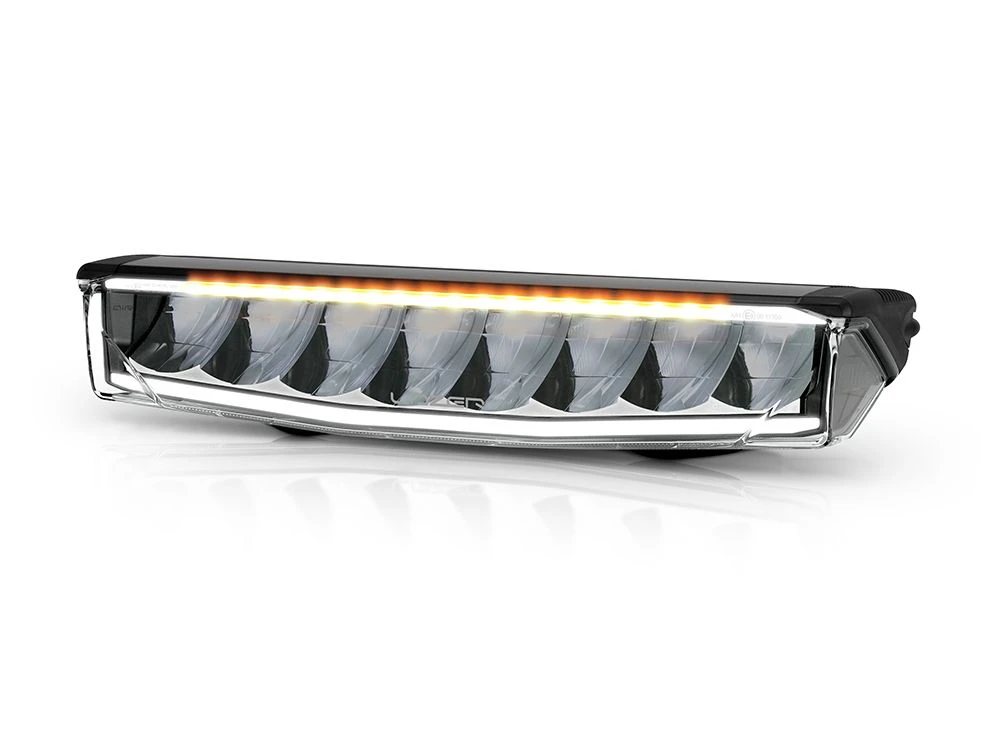

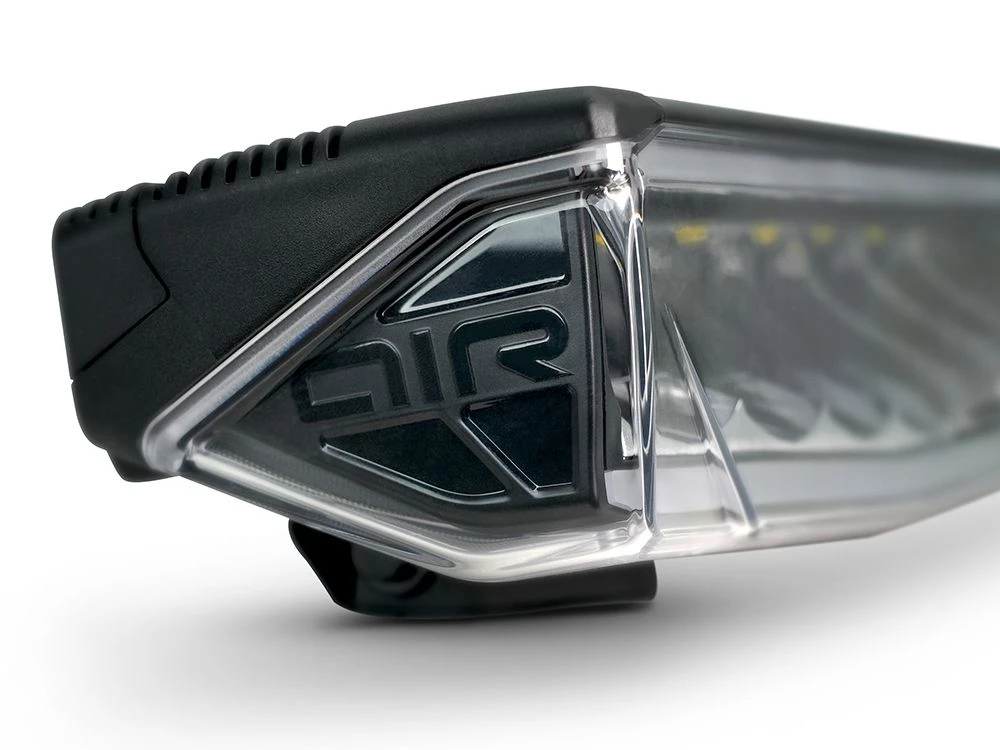

Lazer Air-55 Driving Lamp with homologation, white / amber position light and integrated warning lights, 411mm 6800 lm



Patented one-piece injection-moulded lens with textured underside.

Equipped with the latest premium-class high-efficiency LEDs.

Ultra-reflective vacuum-metallised optical elements provide an optimised beam pattern for everyday road use.

Flash-to-dim function – rapid dimming to reduce glare (e.g. from road signs).

Dual operating mode: high and low output.

Class B driving light compliant with UNECE Reg. 149 – road legal homologation (low power mode only).

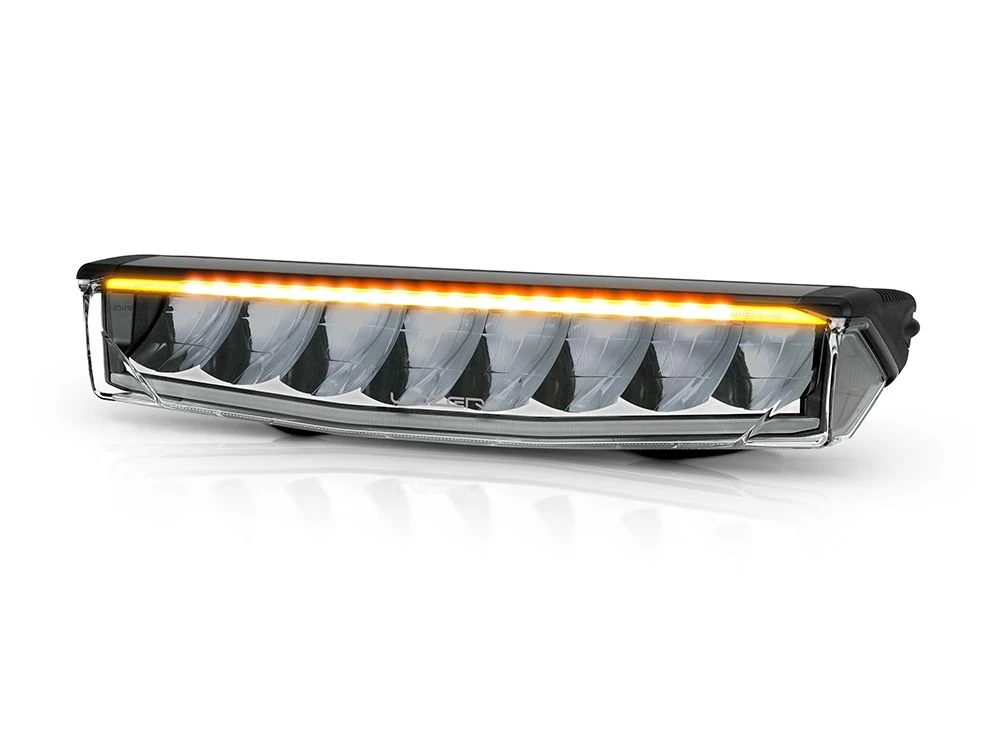

Integrated white (UNECE Reg. 148 homologation) or amber position light function.

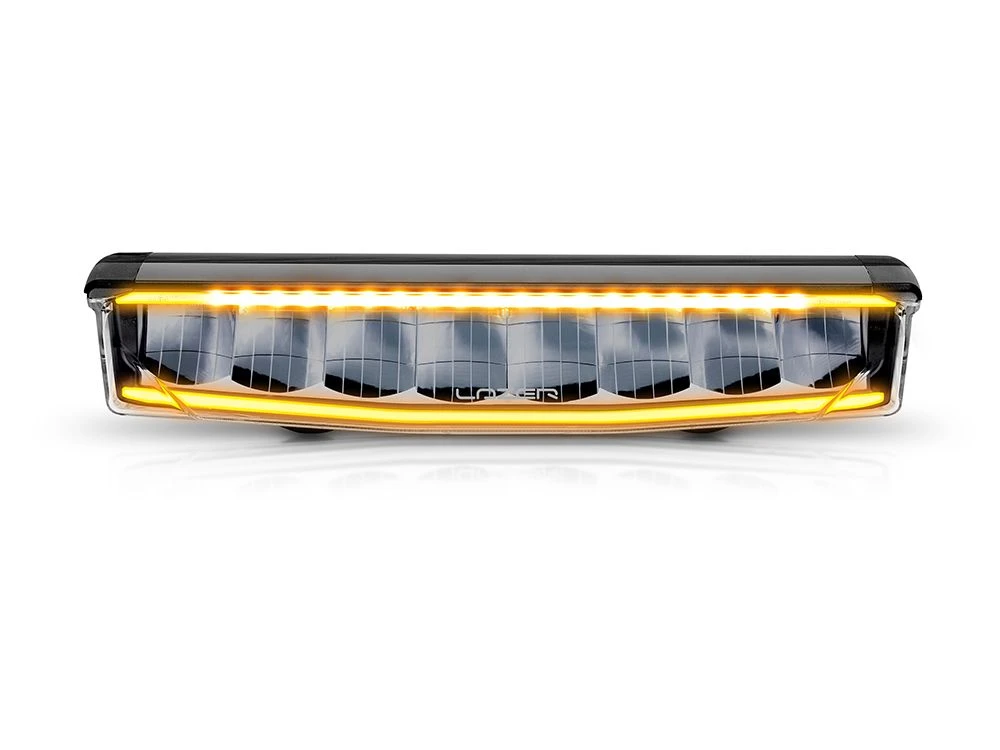

Integrated amber warning light function (Beacon) – UNECE Reg. 65 homologation (XA1).

Versatile Centre Mount system enables low-profile installation relative to the mounting point.

Dynamic startup effect / welcome mode – two selectable activation options.

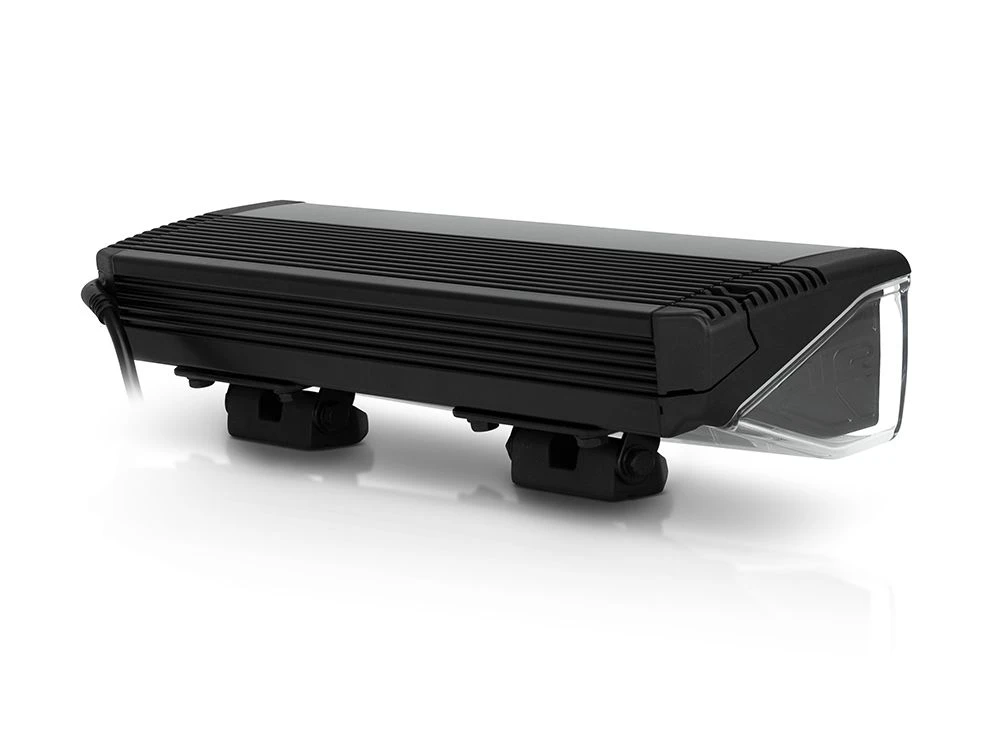

CAE-optimised heatsink ensures improved thermal management.

Automotive-grade pre-treatment anodising and powder coating for maximum corrosion and chemical resistance.

Electronic thermal management system.

“Unbreakable” polycarbonate lens with hard protective coating.

IP68 waterproof rating.

5-year manufacturer warranty.

20 cm power cable terminated with male and female 6-pin Superseal connectors.

Designed and manufactured in the United Kingdom.

Technical Specifications:


1x AIR-55 With Beacon Function

High Output

Low Output

(E-Mark Homologation)


Voltage Range (DC) 10-32V
LED Lifetime 50,000 h
Weight 1.65 kg

DRIVING LIGHT FUNCTION
Total Luminous Flux 6,800 Lm 1,224 Lm
Driver FOV Flux Factor 4,488 Lm 808 Lm
Colour Temperature 5000K
Power Consumption 55 W 9 W
Maximum Current Draw 6.1 A 1.05 A
Current Draw (14.4V) 4 A 0.9 A
Connector 6-Pin Superseal (+20cm cable)

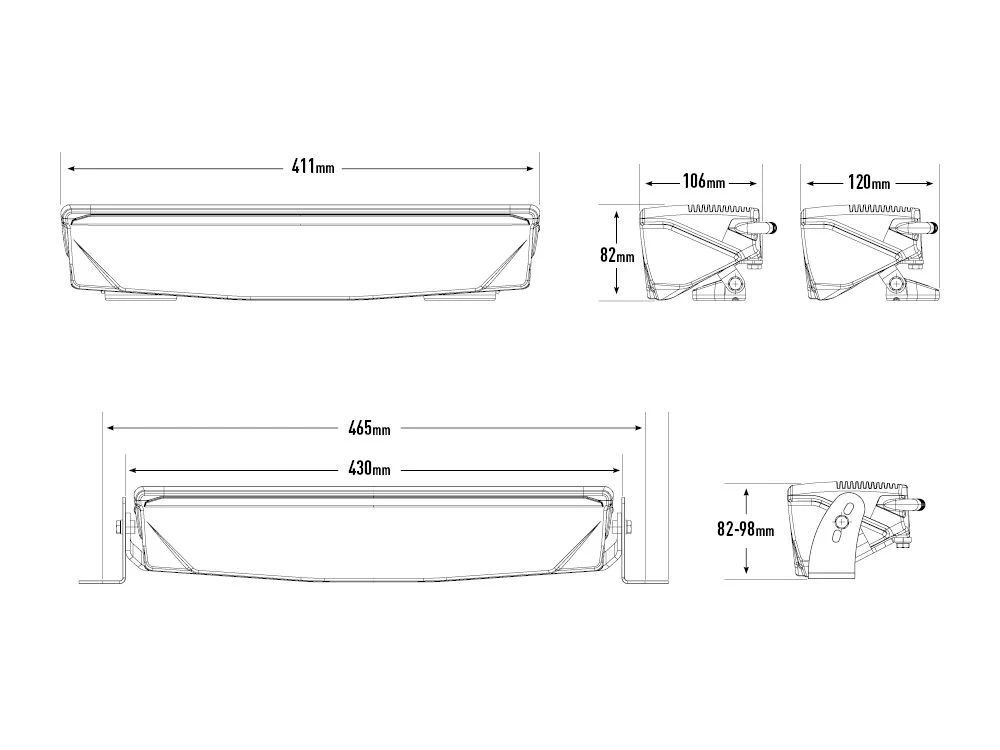

DIMENSIONS
Width 411 mm
Depth 106 mm
Height 82 mm

CERTIFICATIONS
IP Rating IP68
Driving Light (E9 Homologation) ECE R149 - Ref: 12.5 (Low Output only)
Position Light (White) ECE R148
Beacon Function ECE R65 (XA1)
EMC Certification ECE R10
Salt Spray Test ISO 9227
Overvoltage Protection ISO 7637-2

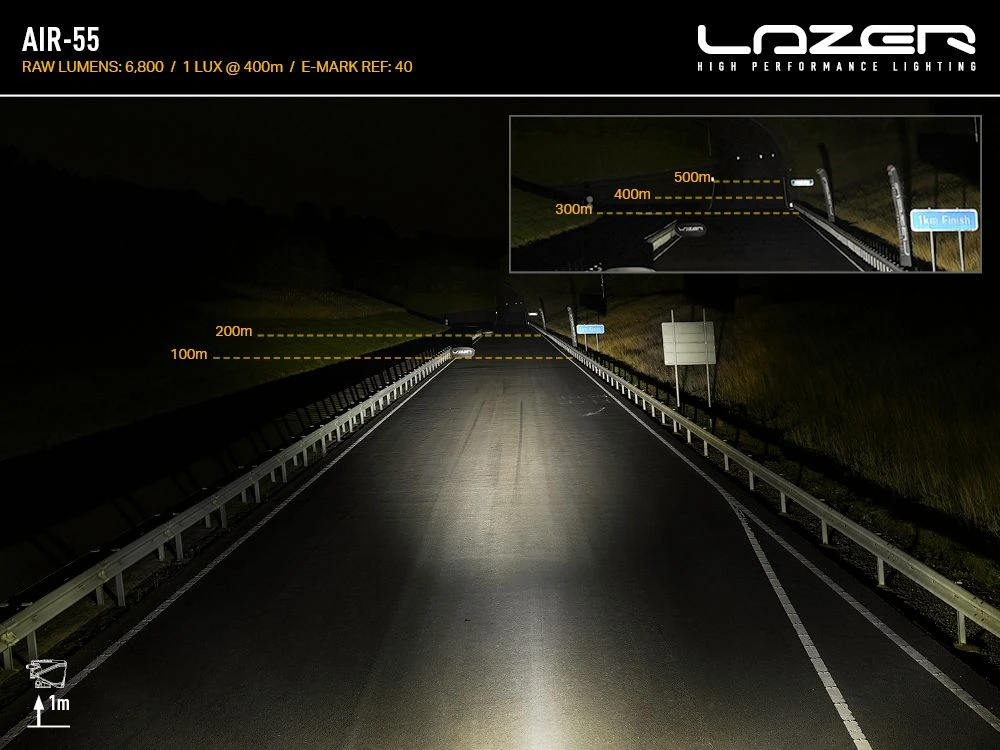

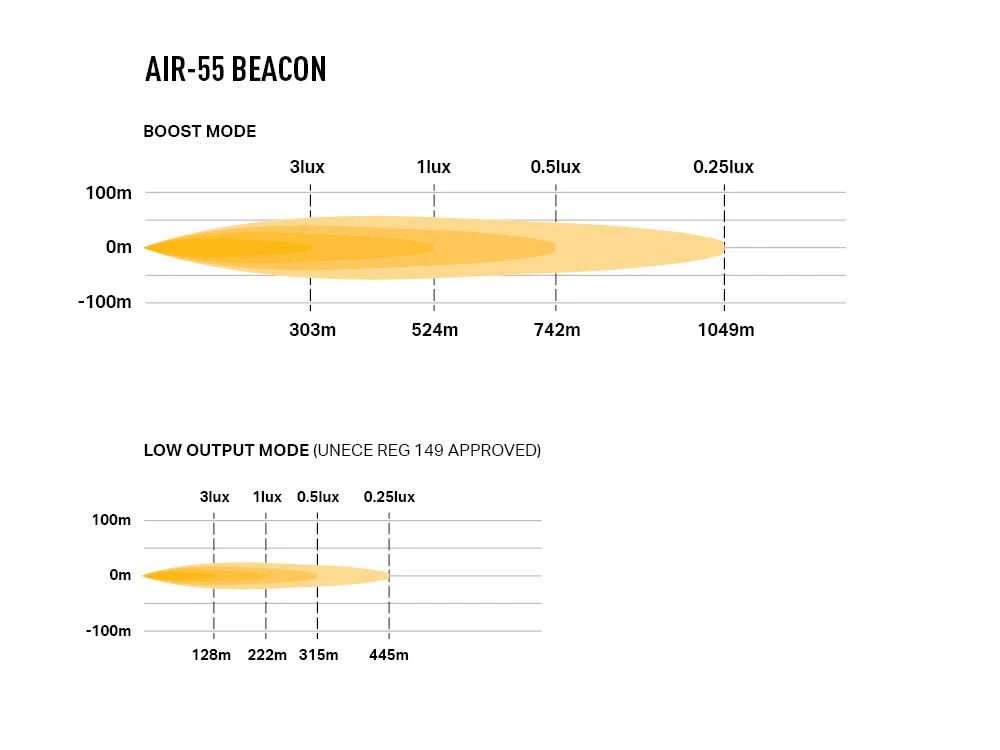

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle 34° / 13°
0.25 Lux 1049m 445m
0.5 Lux 742m 315m
1 Lux 524m 222m
3 Lux 303m 128m

Driving Lamp with homologation Lazer Air-55, white / amber position light and integrated warning lights, 411mm 6800 lm
