Product description:

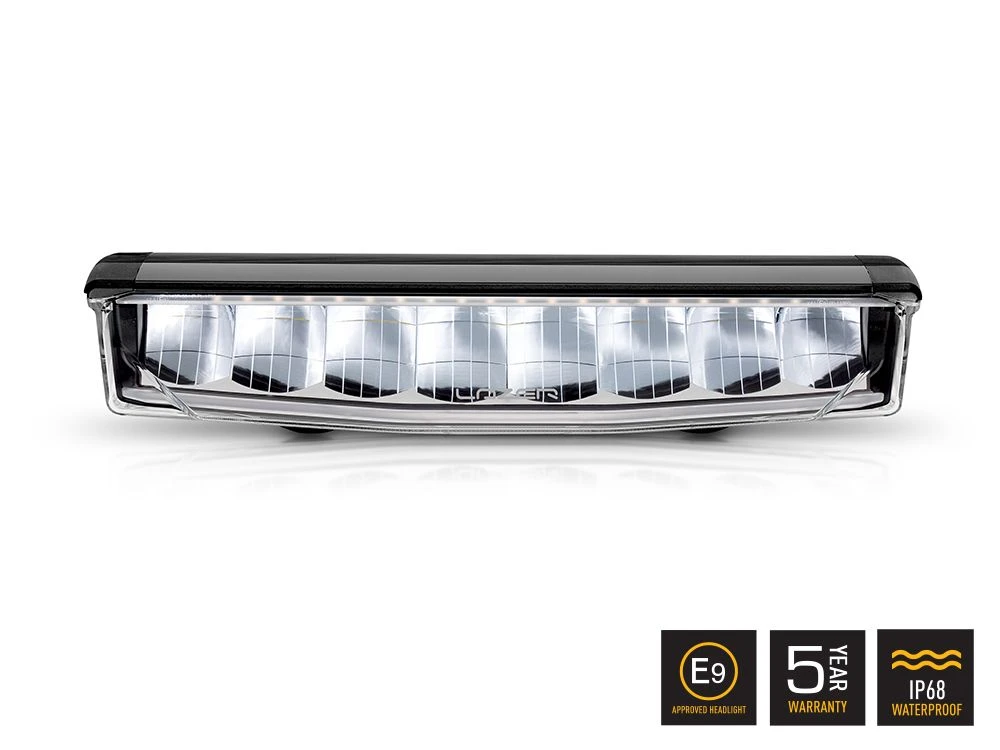

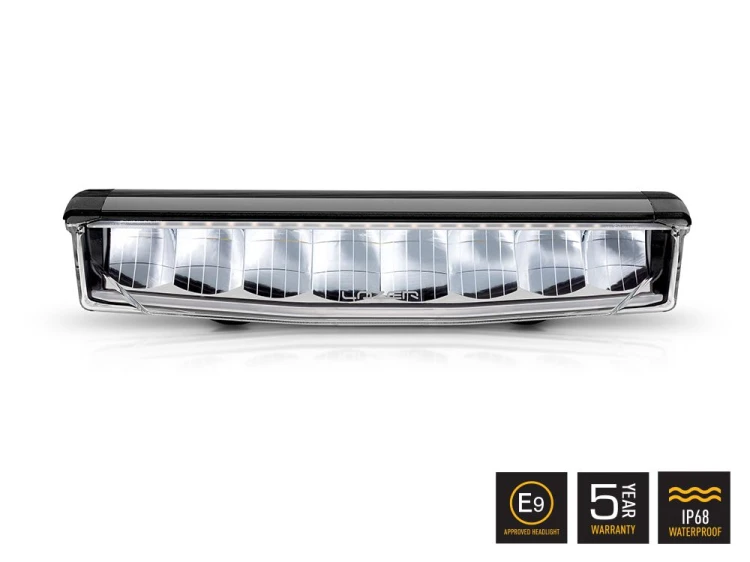

Lazer Air-90 Driving Lamp with homologation, white / amber position light and integrated warning lights, 411mm 9160 lm

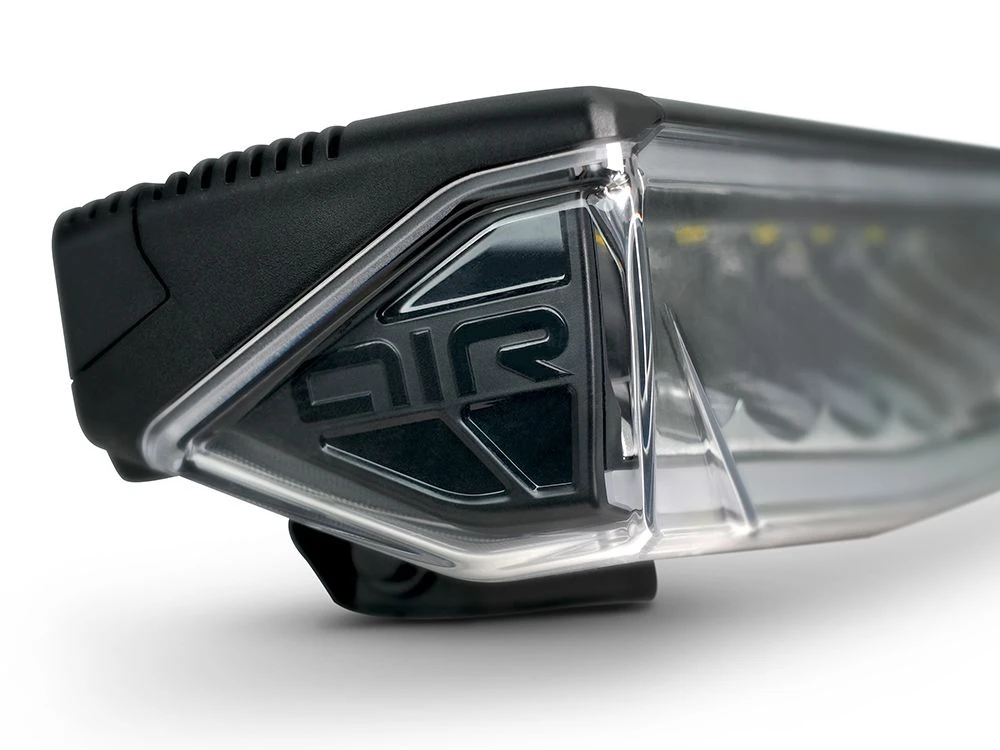

One-piece injection-moulded polycarbonate lens body with patented textured underside.
Equipped with the latest premium-class high-performance LEDs.
Ultra-reflective vacuum-metallised optics provide an optimised beam pattern for everyday road use, including high-mounted installations.
“Flash-to-dim” function reduces glare from road signs.
Dual output modes – high and low power operation.
Class B driving light compliant with UNECE Reg 149, road legal in low output mode.

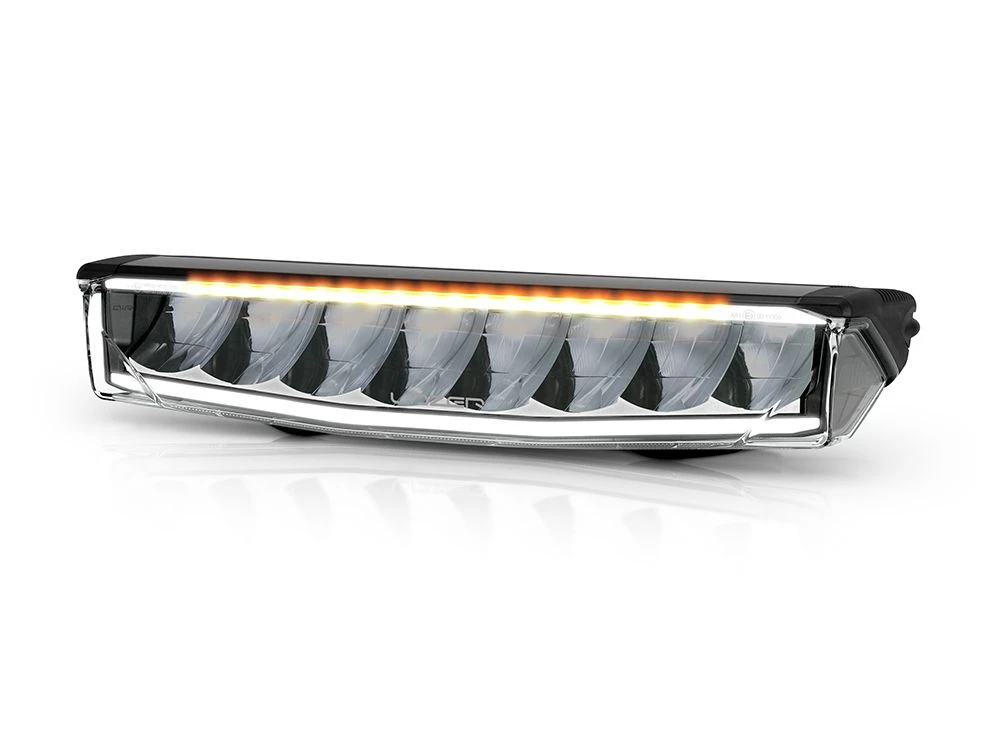

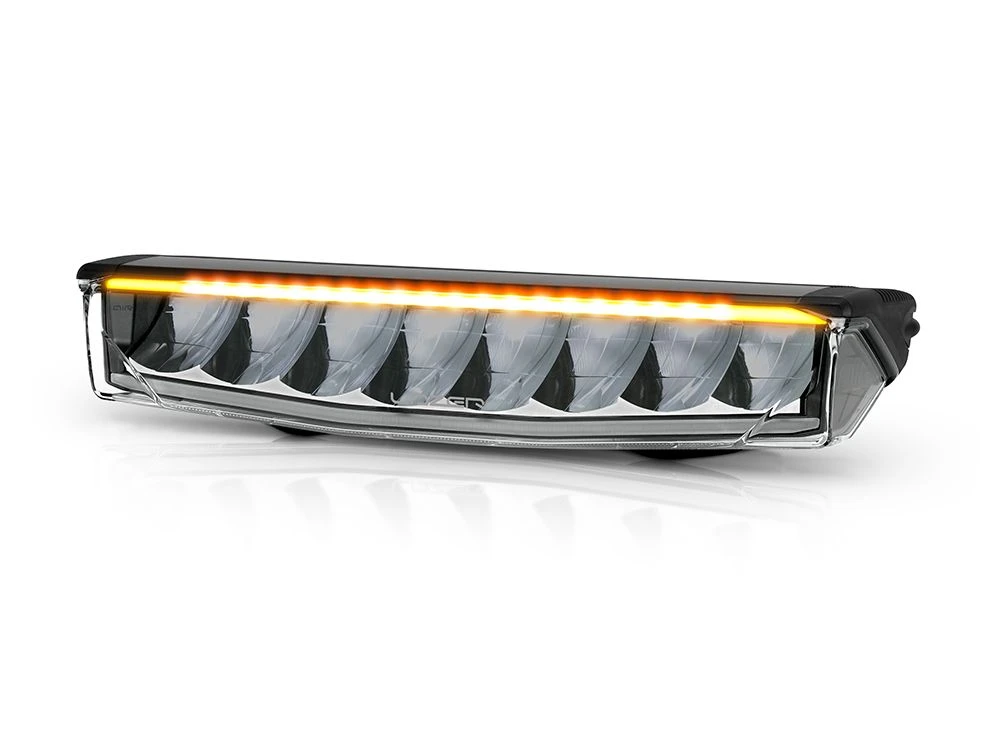

Integrated white (UNECE Reg 148 compliant) or amber position light function.

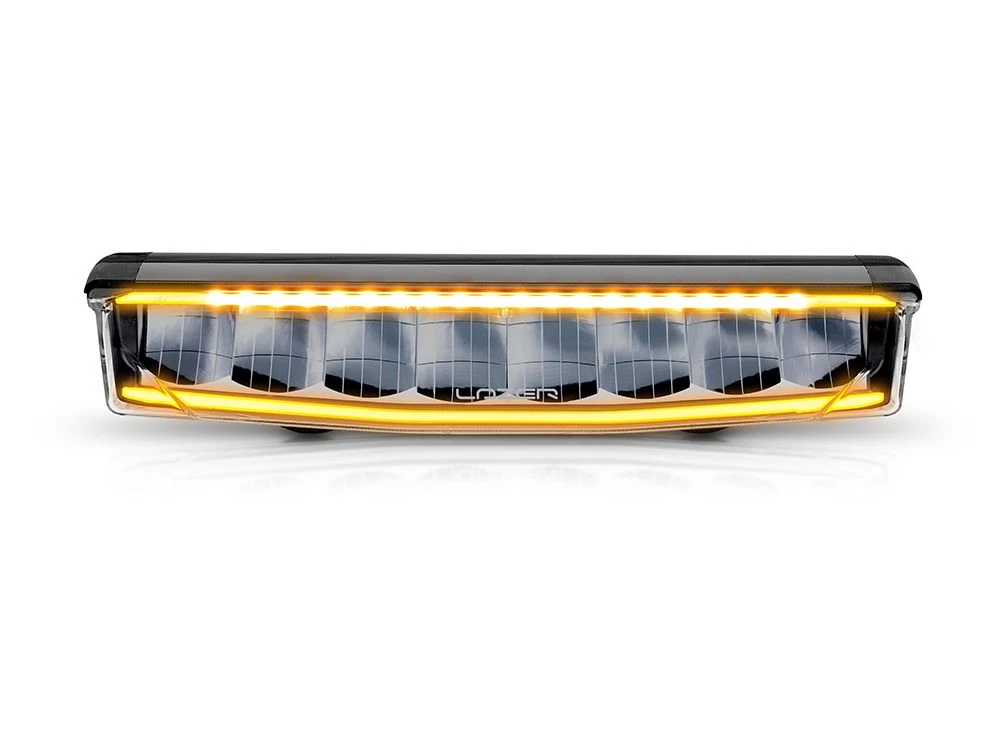

Integrated amber warning light function – UNECE Reg 65 (XA1).

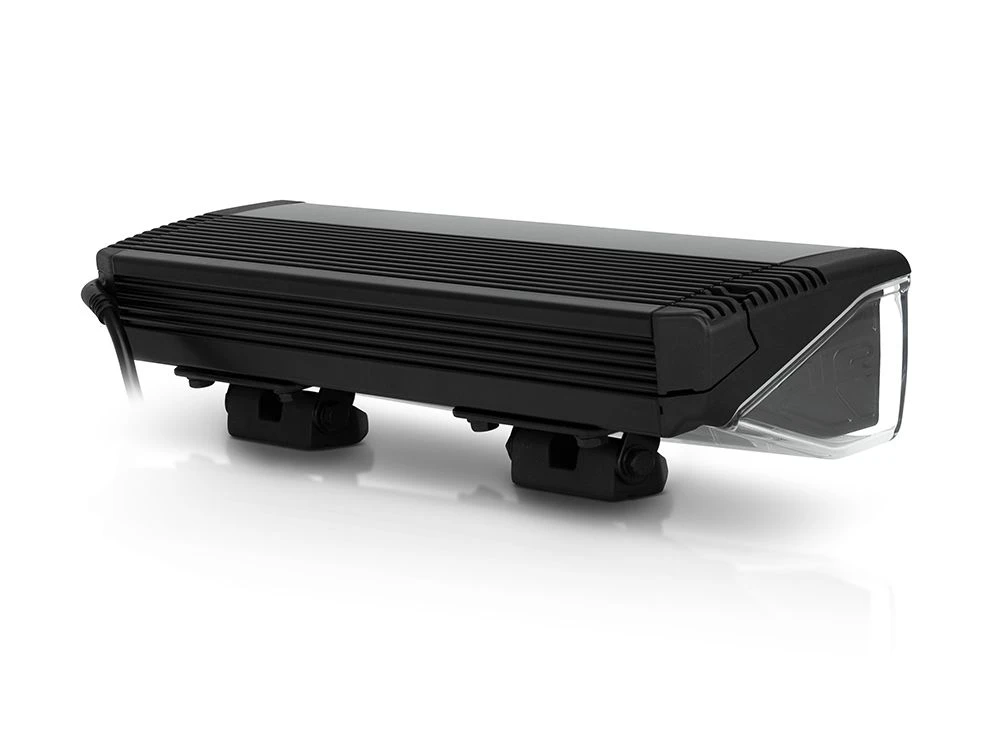

Supplied with versatile “Centre Mount” system allowing low-profile mounting relative to the fixing point.
Dynamic startup / Welcome mode – two selectable activation options.
CAE-optimised heatsink providing improved thermal dissipation.
Pre-anodised treatment and automotive-grade powder coating for maximum corrosion and chemical resistance.
“Unbreakable” hard-coated polycarbonate lens backed by a lifetime guarantee.
IP68 waterproof rating.
5-year warranty.
20 cm lamp cable with male/female 6-pin Superseal connectors.
Designed and manufactured in the United Kingdom.
Technical Specifications:
| 1x AIR-90 |
BOOST |
LOW OUTPUT/ |
|---|---|---|
| Voltage Range (DC) | 10-32V | |
| LED Lifetime | 50,000 h | |
| Weight | 1.65 kg | |
| DRIVING LIGHT FUNCTION | ||
| Total Luminous Flux | 9,160 Lm | 2,290 Lm |
| Driver FOV Flux Factor | 6,229 Lm | 1,557 Lm |
| Colour Temperature | 5000K | |
| Power Consumption | 90 Watts | 14 Watts |
| Peak Current Draw | 8.5 Amps | 1.3 Amps |
| Current Draw (14.4V) | 7.1 Amps | 1 Amp |
| Connector | 3-Pin Superseal (+25cm Cable) | |

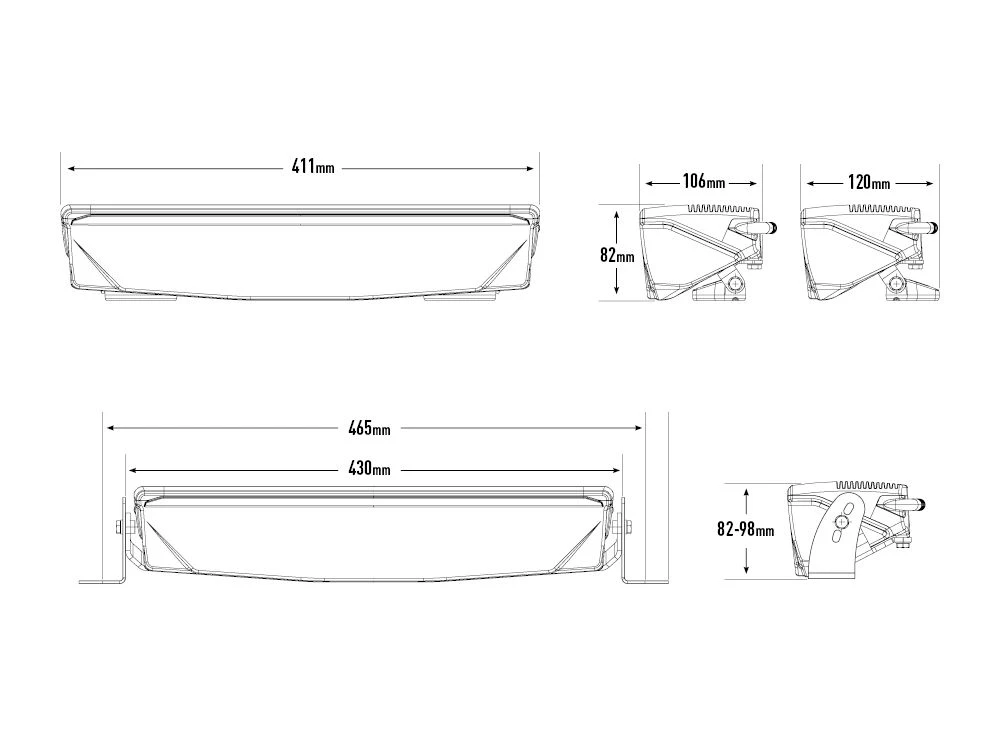

| DIMENSIONS | ||
| Width | 411 mm | |
| Depth | 106 mm | |
| Height | 82 mm | |
| CERTIFICATION | ||
| IP Rating | IP68 | |
| Driving Light (E9 Homologation) | ECE R149 - Ref: 17.5 (low output mode only) | |
| Position Light (White) | ECE R148 | |
| Beacon Function | ECE R65 (XA1) | |
| EMC Certification | ECE R10 | |
| Salt Spray Test | ISO 9227 | |
| Load Dump Protection | ISO 7637-2 | |

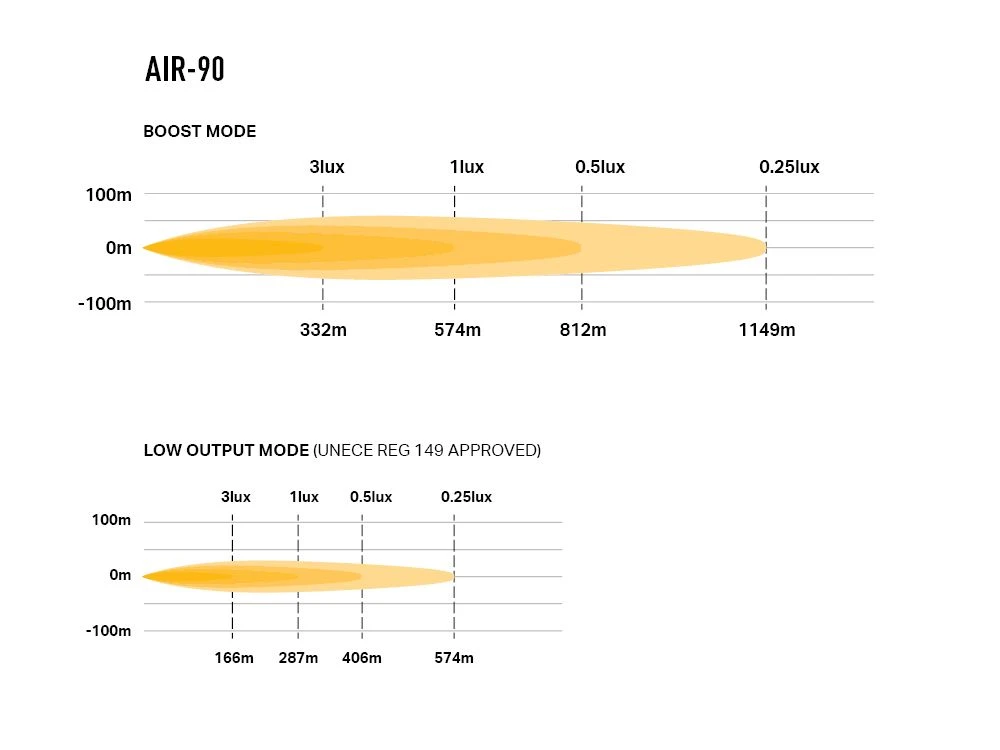

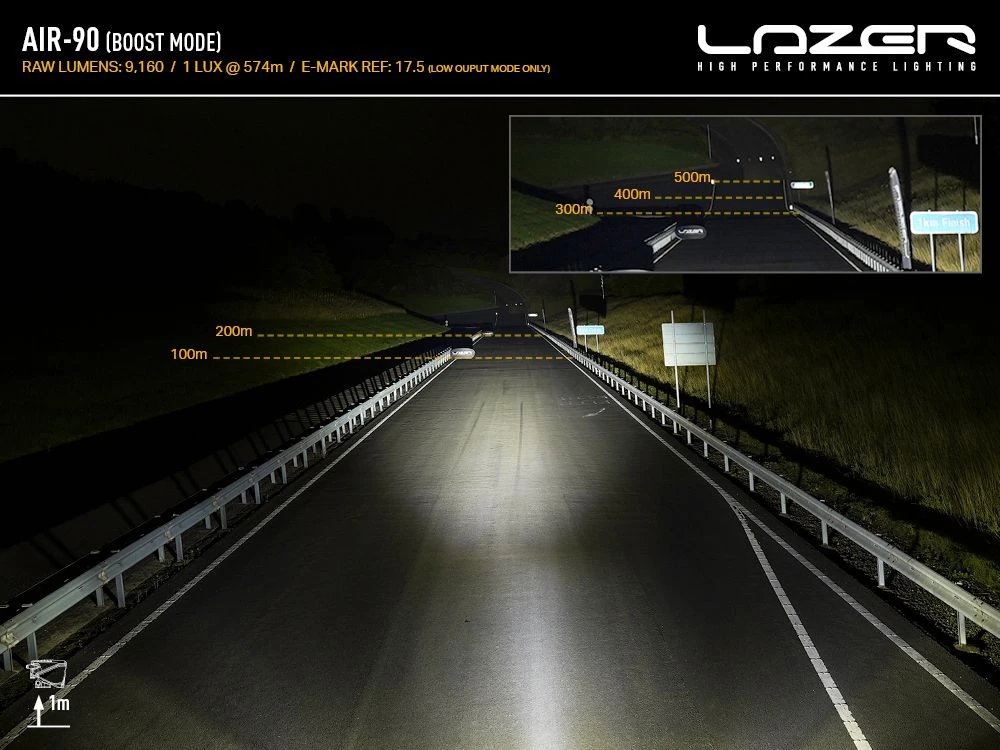

| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 34° / 13° | |
| 0.25 Lux | 1149m | 574m |
| 0.5 Lux | 812m | 406m |
| 1 Lux | 574m | 287m |
| 3 Lux | 332m | 166m |
Lazer Air-90 Driving Lamp with homologation, white / amber position light and integrated warning lights, 411mm 9160 lm
Product code: 0A90-STRB-B
