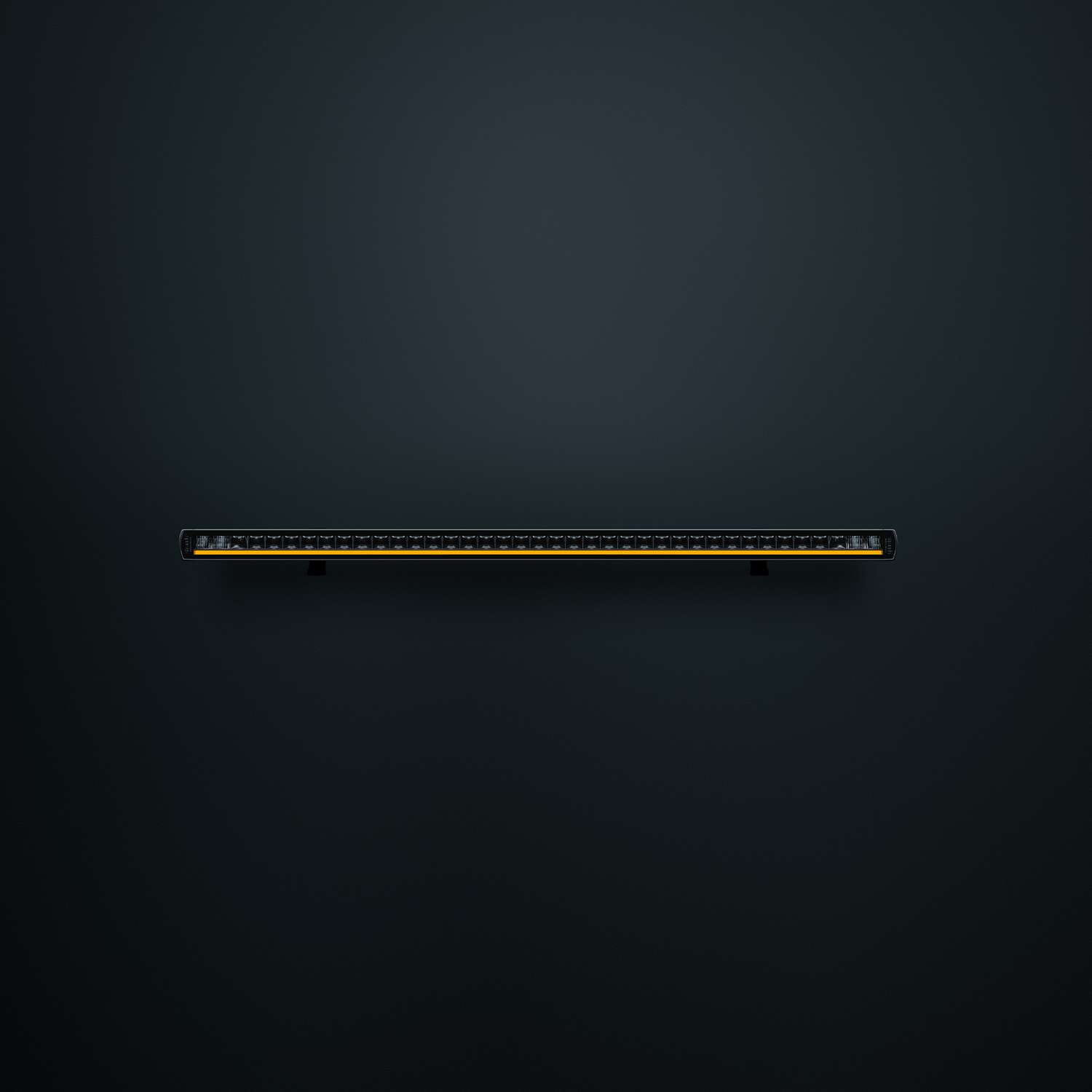

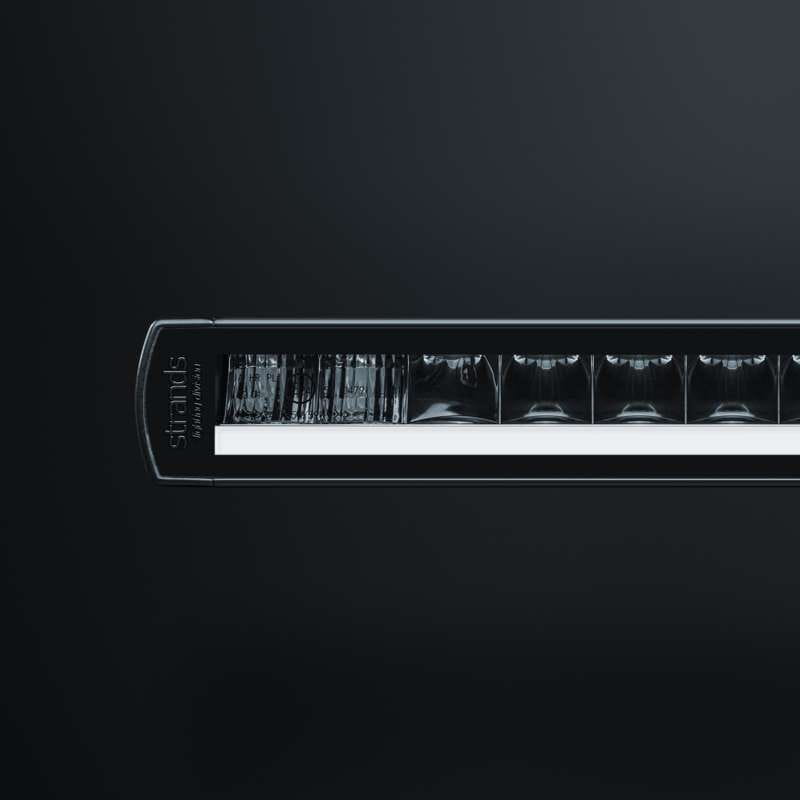

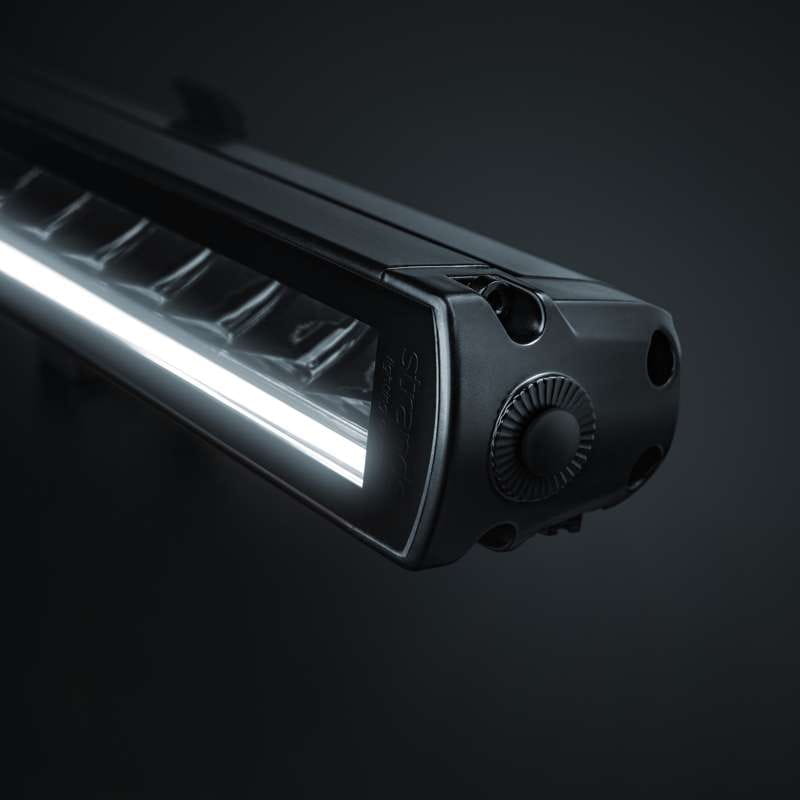

Led Bar 32" Siberia XPA SR STRANDS, white/orange position light

Siberia XPA SR Led Bar 32" STRANDS, position light white/orange, order no. 809413A

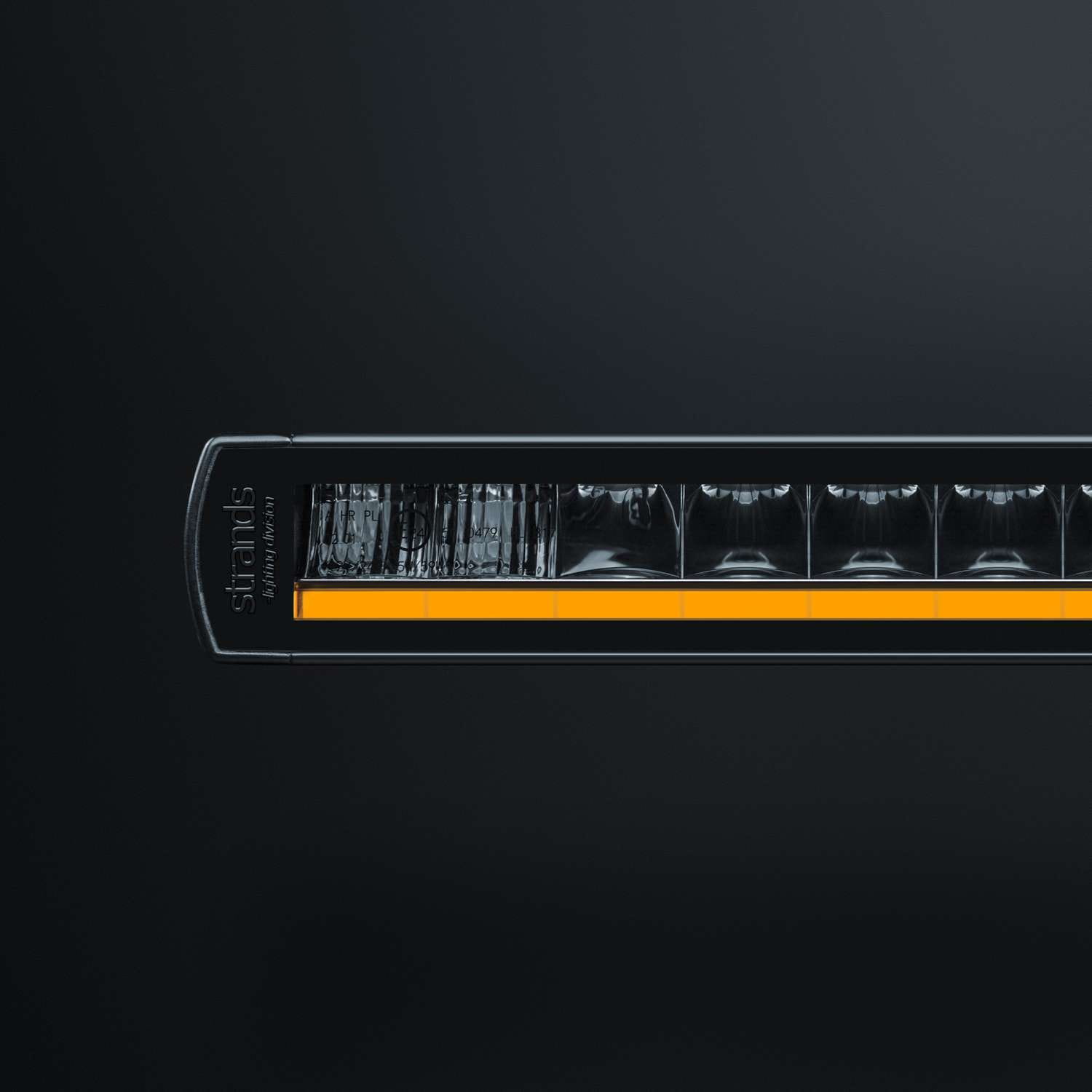

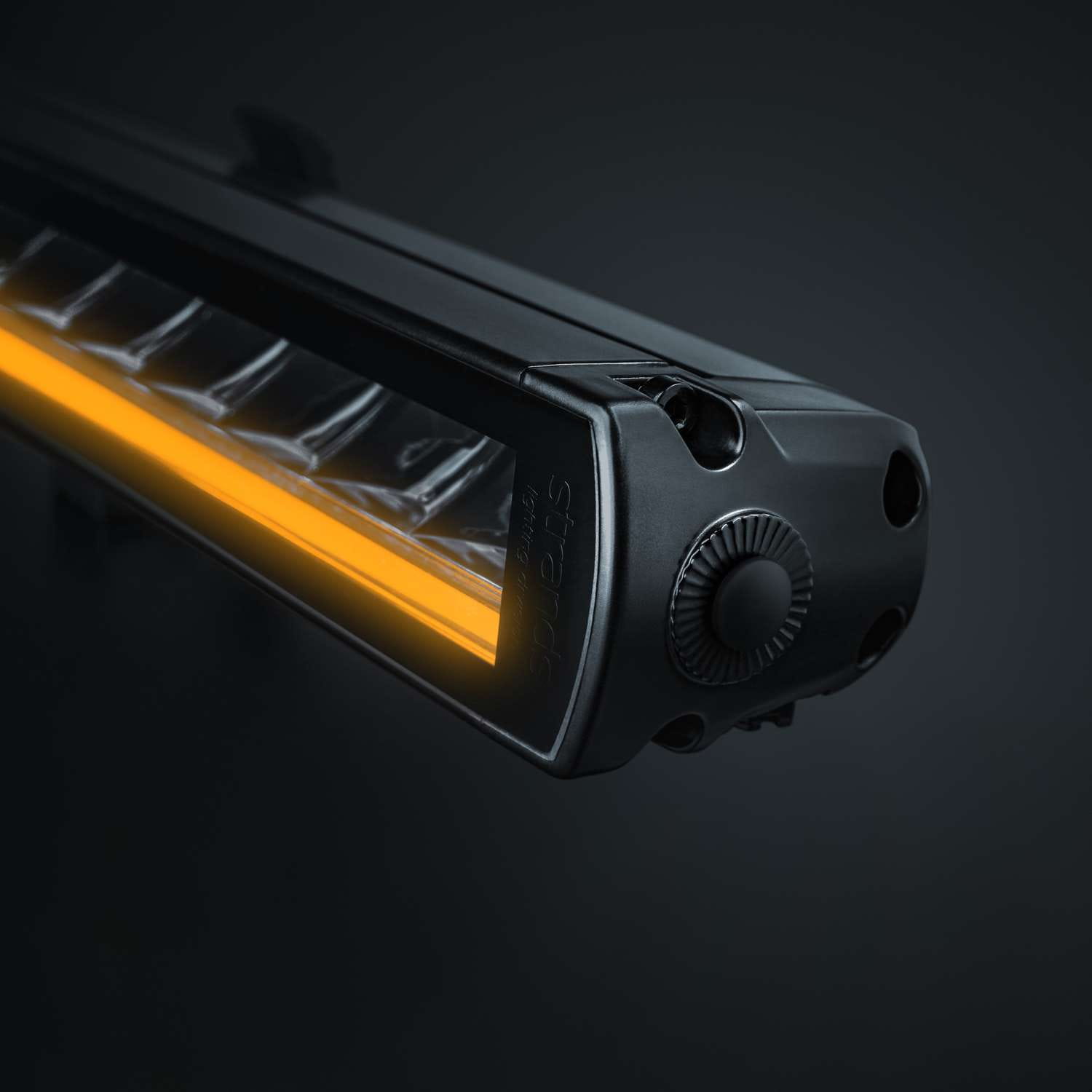

With over 10,900 real-world lumens and a range of over 700 meters in Xperience mode, the Siberia XPA Single Row 32" LED lamp  will light up the darkest nights with its long-range beam of light. If you like an amber glow, XPA lamps have a position light in amber and white. The XPA Single Row is equipped with the Hello function  – just flash the high beam twice quickly and the position lights will send  a "greeting" to other drivers. Durable materials and powder coating make this LED lamp a long-lasting addition to your vehicle. It has an IP68/IP69K rating, which guarantees high protection against dirt and water. Installation is very simple thanks to the DT-4 connector and 550 mm cable, which saves you the hassle of connecting wires. E-mode is ECE R149/148 homologated with reference number 20.

Technical details:

Unit: pcs.

Voltage: 10-32V DC

Theoretical power: 160W

Power consumption: 160W

Functions: High beam, amber and white position light, "Hello" function for position lights

Power consumption – individual functions:Xperience mode: 160W / E-mode: 30W / White position light: 14.5W / Amber position light: 14.5W

Luminous flux (theoretical): 12,000 lm

Luminous flux (real): E-mode: 1750 lm / Xperience mode: 10,950 lm

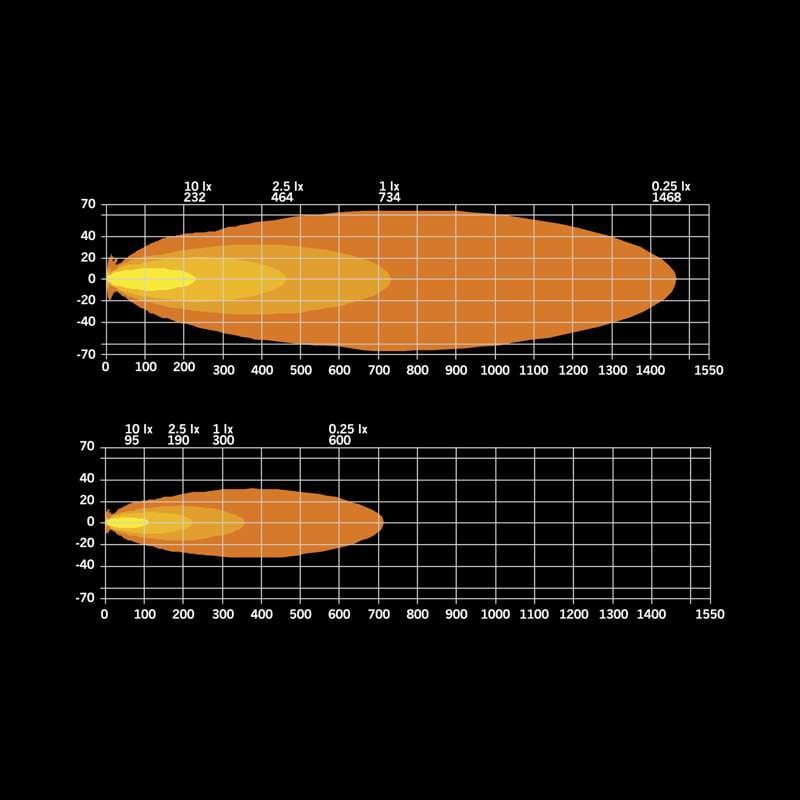

1 lux: E-mode: 300 m / Xperience mode: 734 m

Color Temperature: 5700K

Light Beam Pattern: Long Distance

Beam Angle: 14.4°

Connector: DT-4PIN

Cable length: 550 mm

Case Color: Black

Lens Color: Transparent

LED Color: White/Amber

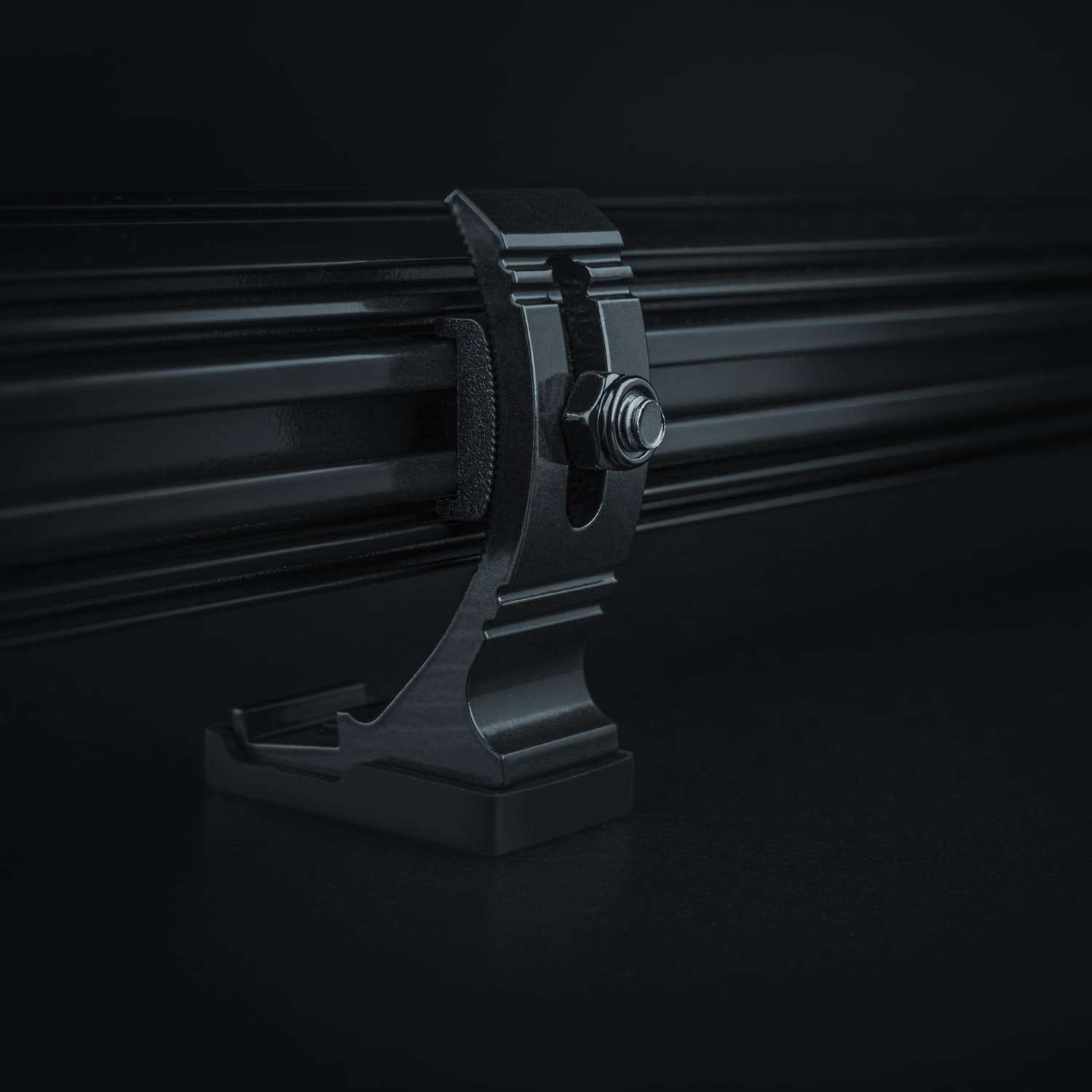

Handle Material: Aluminum Alloy

Housing material: Aluminum

Lens Material: Polycarbonate

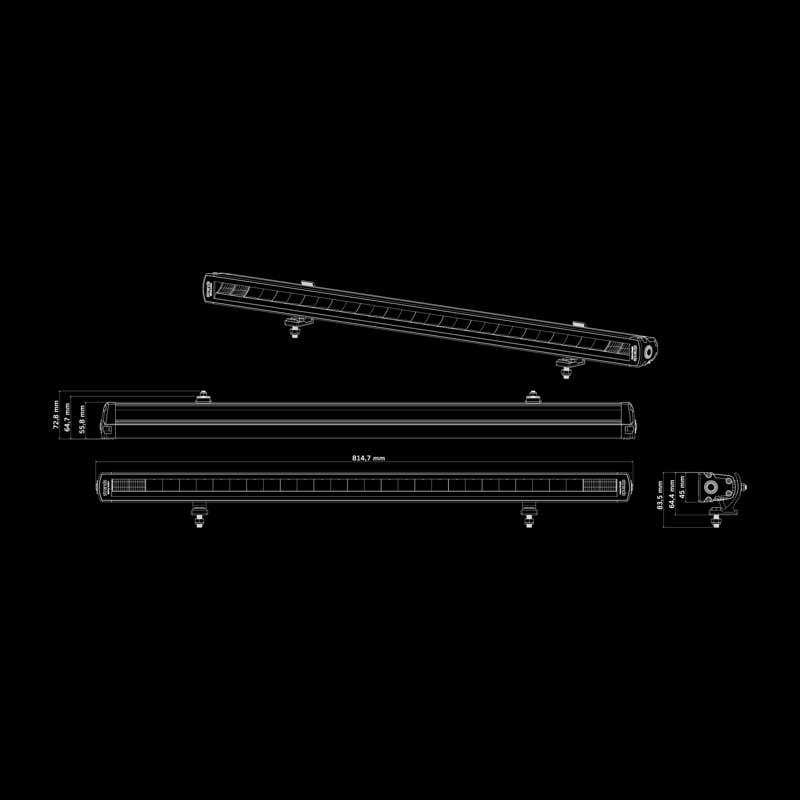

Length: 814.7mm

Depth: 55.5 mm

Height: 45 mm

Height with handle: 64.5 mm

Weight: 2.52 kg

Rating (IP): IP68 / IP69K

Operating temperature range: -35°C to +60°C

E-type-approval: Yes

Compliant with the standard: ECE R148, R149

Reference number: 20

EMC: ECE R10
