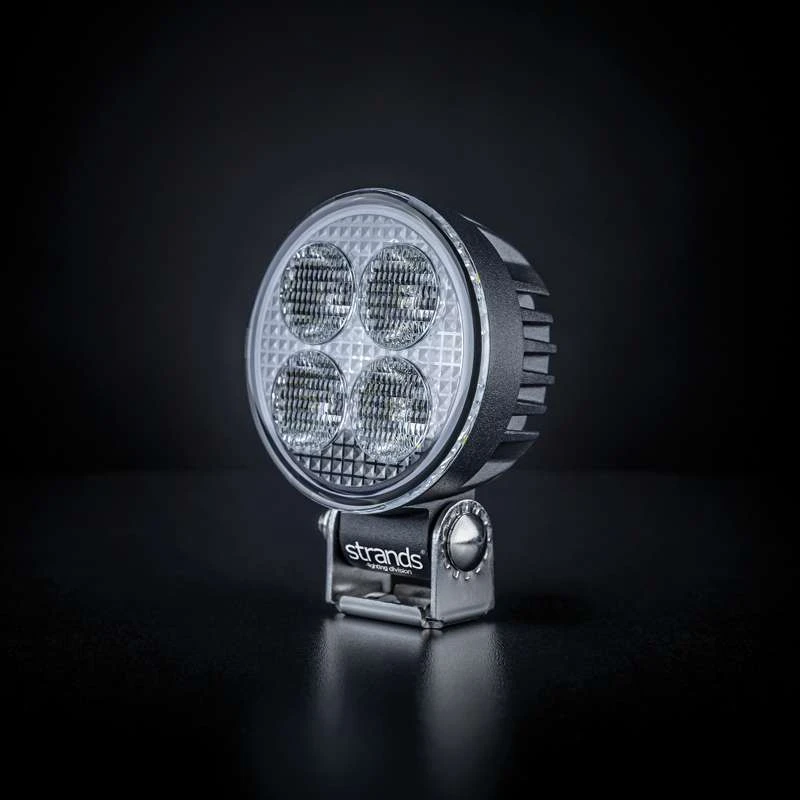

UNITY STRANDS work lamp, 20W, 10–32V, 3040 Lm, flood beam

UNITY STRANDS Work Lamp, 20W, 10–32V, 3040 Lm, flood beam, part no. 809236

Become a professional with the Unity series. It delivers a revolutionary, high-output light beam. Extreme performance built for demanding jobs.

Unity stands out with the so-called “infinity design” – the lens extends all the way to the corners of the housing, giving the lamp a modern appearance, increased resistance to dirt, and allowing the light output to reach its full power. The slim profile perfectly matches modern vehicles that require work lights – such as trucks, tractors, trailers, construction equipment, and agricultural machinery.

High-output light sources usually generate a lot of heat, which can lead to damage. The built-in temperature control prevents overheating – if necessary, it reduces the power until the lamp cools down. Thanks to this feature, the Unity series is among the most durable products on the market.

Technical specifications:

• Unit: pcs.
• Operating voltage: 10–32V DC
• Theoretical power: 24 W
• Power consumption: 20 W
• Luminous flux (theoretical): 3040 lm
• Luminous flux (actual): 1942 lm

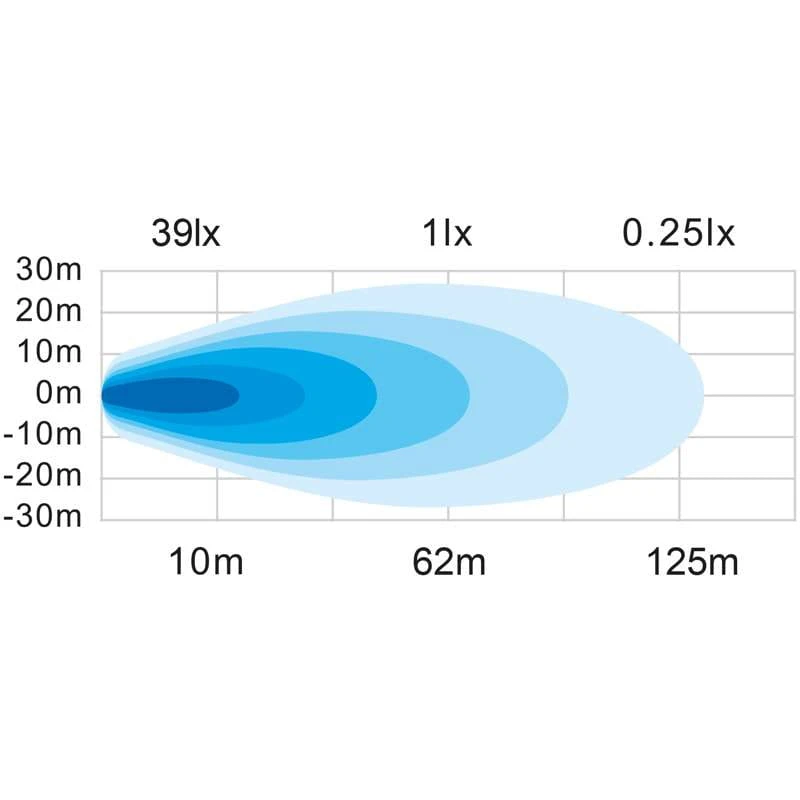

• 1 lux at: 60 m
• Color temperature: 5000 K
• Beam pattern: Wide beam (flood)
• Beam angle: 80.1°
• Connector: DT-2PIN
• Cable length: 250 mm
• Housing color: Black
• Lens color: Clear
• LED color: White
• Bracket material: Stainless steel
• Housing material: Aluminium
• Lens material: Polycarbonate
• Depth: 54.72 mm
• Height with bracket: 112.2 mm
• Diameter: 84.4 mm
• Weight: 0.3924 kg
• Ingress protection rating: IP68
• Operating temperature range: -20°C to +45°C
• E-approval: No
• EMC: ECE R10, CISPR25 Class 3**
