Work Lamp UNITY EDGE STRANDS, 20W, 10–36V, 2010 lm, flood beam, part no. 809275

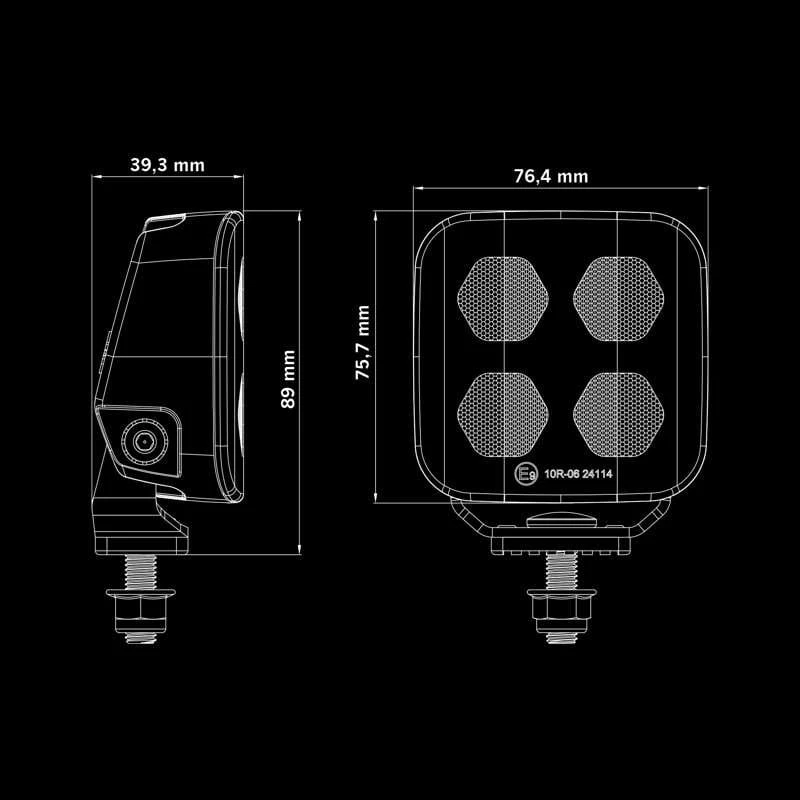

The updated Unity Edge work lamp is an excellent choice for all drivers – both professionals with many miles on the road and those just starting their journey. Despite its compact size (76.4 × 39.3 × 75.7 mm without bracket), it delivers a real output of 2010 lumens and a color temperature of 5700 K, providing bright and clear illumination for the workspace. Its compact size, low power consumption (20 W), and reach of 45 meters make it an essential piece of equipment for any vehicle.
With an IP68/IP69K ingress protection rating, the lamp is extremely durable and resistant to dirt and water. It also features electromagnetic compatibility certification ECE R10 and CISPR25 Class 3. The 150 mm cable with a DT-2 plug makes installation extremely simple – an ideal solution for upgrading old or ineffective lights.
Unity Edge offers high performance and quality at an affordable price. So why not upgrade your entire fleet with this stylish work lamp?
Technical Specification:
-
Unit: pcs.
-
Voltage: 10–36V DC
-
Theoretical power: 22W
-
Power draw: 20W
-
Actual lumen output: 2010 lm
-

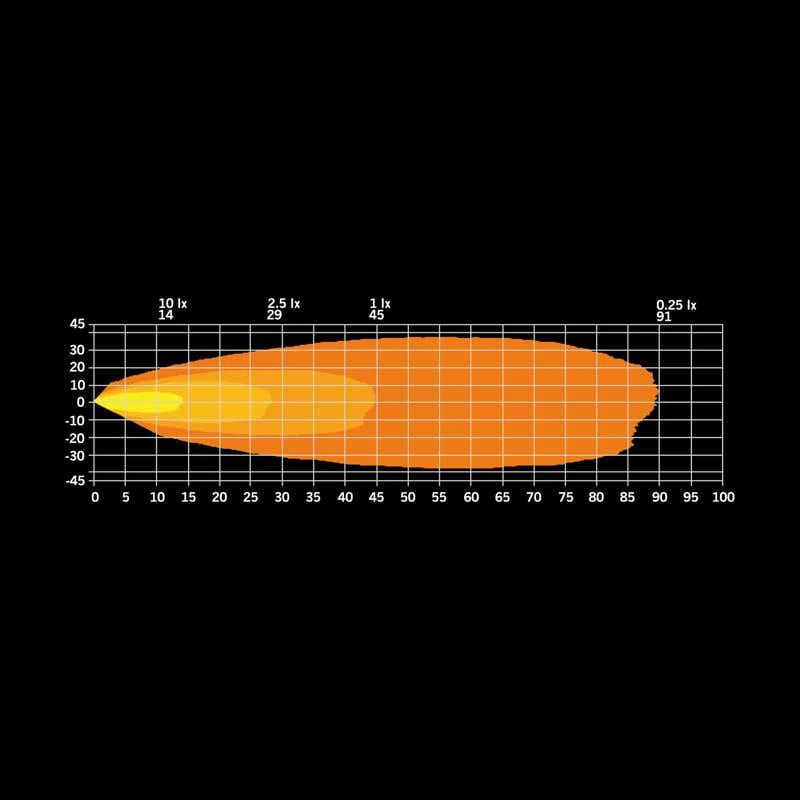

1 lux @: 45 m
-
Light color: 5700K
-
Beam pattern: flood beam
-
Beam angle: 111.6°
-

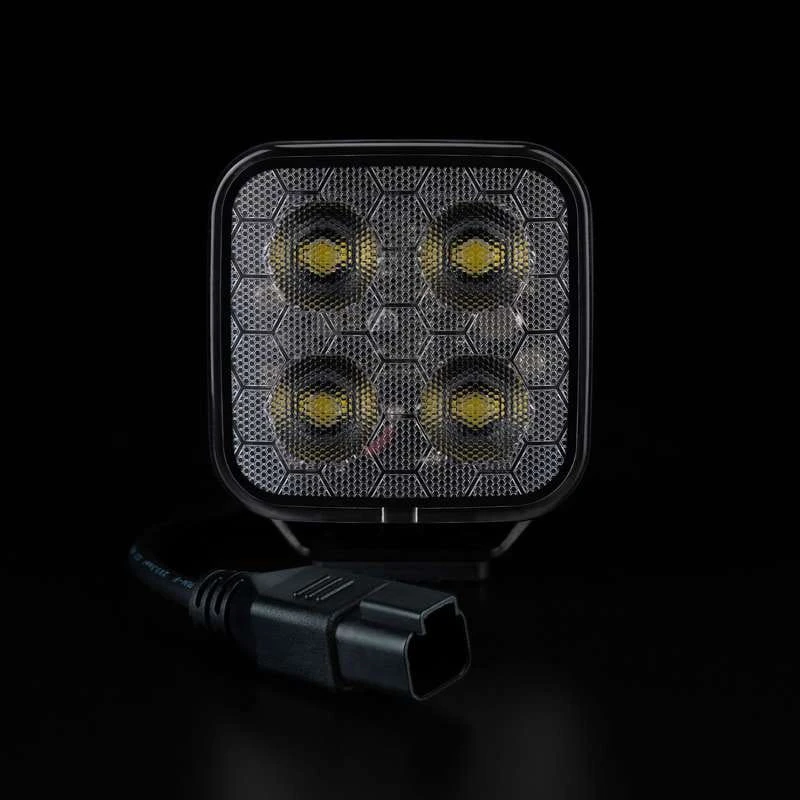

Connection: DT-2PIN
-
Cable length: 150 mm
-
Lens color: Clear
-
LED color: White
-
Housing material: Aluminium
-
Lens material: Polycarbonate
-
Length: 76.4 mm
-
Height: 75.7 mm
-
Height with bracket: 89 mm
-
Weight: 0.306 kg
-
Ingress protection: IP68/IP69K
-
Operating temperature range: -30 – +65°C
-
E-approval: Yes
-
ADR approval: No
-
EMC: ECE R10, CISPR25 Class 3
