Work Lamp UNITY STRANDS, 10W, 10–32V, 1520 lm, flood beam

Work Lamp UNITY STRANDS, 10W, 10–32V, 1520 lm, flood beam, part no. 809235

Become a professional with the Unity series. These lamps feature a perfectly smooth look and a revolutionarily powerful light output. Extreme performance built for demanding tasks. Unity stands out with its unique infinity design. The lens extends all the way to the corners, not only providing a great appearance but also preventing dirt buildup and allowing the full use of the lamp’s light output. The slim design fits perfectly on modern vehicles that require powerful lighting, such as trucks, tractors, trailers, construction machinery, and agricultural equipment.

Powerful lighting often generates high temperatures, which can lead to damage. The built-in temperature control system prevents this by protecting the lamp and automatically reducing the power until it cools down. Thanks to this functional solution, the Unity series is one of the most durable and reliable on the market.

Technical Specification:

• Unit: pcs.

• Voltage: 10–32V DC

• Theoretical power: 12W

• Power draw: 10W

• Theoretical lumen output: 1520 lm

• Actual lumen output: 931 lm

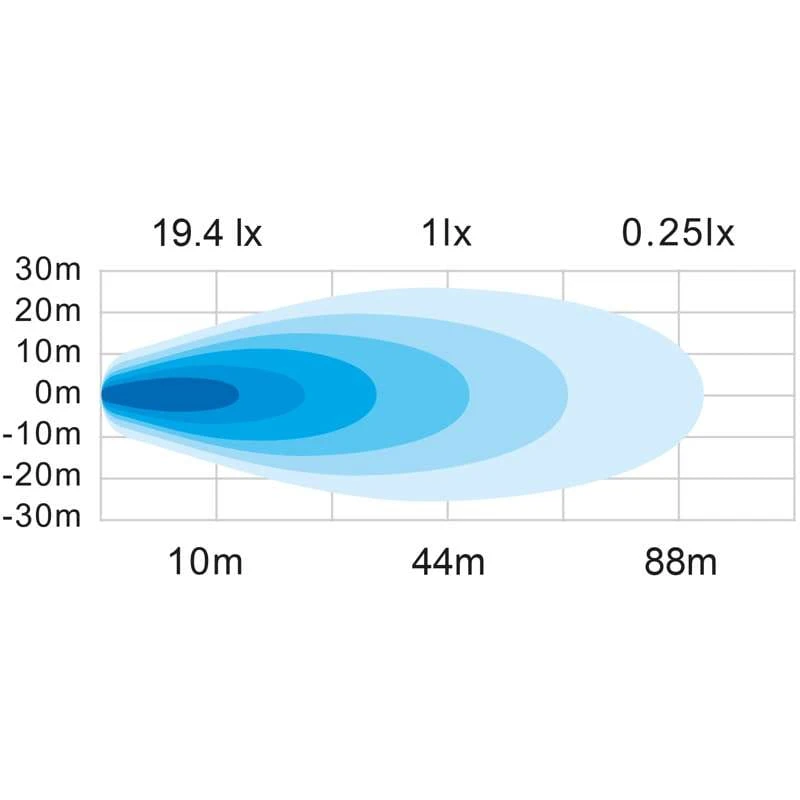

• 1 lux @: 43 m

• Light color: 5700K

• Beam pattern: wide beam

• Beam angle: 80.2°

• Connection: DT-2PIN

• Cable length: 500 mm

• Housing color: Black

• Lens color: Clear

• LED color: White

• Bracket material: Stainless steel

• Housing material: Aluminium

• Lens material: Polycarbonate

• Length: 52.11 mm

• Depth: 26.13 mm

• Height: 67.03 mm

• Height with bracket: 75.06 mm

• Weight: 0.18 kg

• Ingress protection: IP68

• Operating temperature range: -30 – +65°C

• Approval: No

• EMC: ECE R10
